- 2 Panel Sectional Reflector
- Quick Deploy Tripod Mount
- Hard Transport Cases
$0.00
Quantity
-500x500.png "Full Motion LEO-MEO Antennas")
Full Motion LEO-MEO Antennas
13138 X/Y

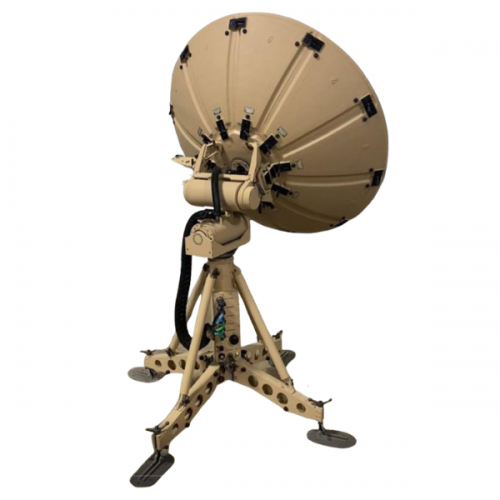

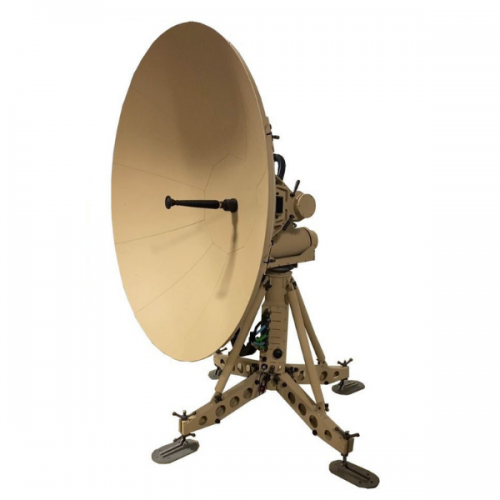

The Sat-Lite Technologies Model 13138 X/Y Antenna is a high performance full motion antenna designed to track satellites in LEO / MEO/ and GEO orbits. The portable packs in 3 cases plus an RF / Integration case and can be assembled in 20 minutes or less. The high performance servo system is configured to automatically determine an accurate heading and track satellites using TLE or an integral beacon receiver. Multiple tracking algorithms are available. The X/Y pedestal provides +/- 90 degrees of travel in both axes for full overhead pass with high speed retrace capability.
- Tracks LEO, MEO, and GEO targets
- Integrated High Performance Servo Control System with Precision Tracking
- Full Motion X/Y Pedestal for overhead tracking.
- High Speed Retrace > 15 deg / sec
- Multi-Band capable with interchangeable feeds
- Integrated L Band Beacon Receiver with Optional Spectrum Analyzer
- Precision Carbon Fiber Reflector, No Special Tools / Bolt Together Design
- Portable / No Tools required for assembly.
