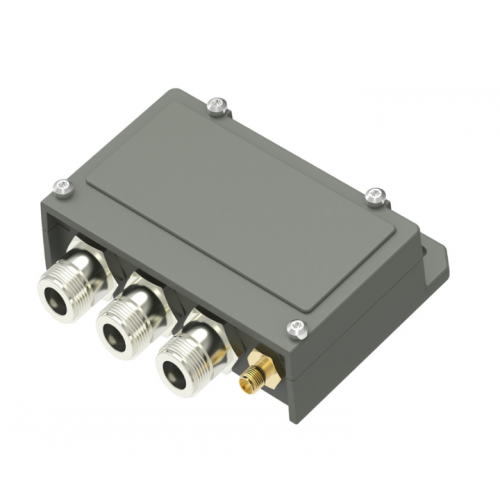

Diplexer with DC inserter 10 MHz and L-Band, Swedish Microwave
SMW-DIP10LDC*
The Swedish Microwave L-Band DC Inserter (LNB) / 10 MHz diplexer (LNB or BUC) is used when an external 10 MHz reference signal input is needed for an LNB or BUC. Recommended to use with SMW 10 MHz ref. oscillator or another 10 MHz signal source.
Separate DC insertion (max. 1A) via connector or DC cable (pigtail).
- Low through loss for L-Band
- DC/10 MHz/L-Band multiplexing
- Wide operating temperature range
- Outdoor rated (IP 67)
- Available with F, N or SMA connectors
