- 2 Panel Sectional Reflector
- Quick Deploy Tripod Mount
- Hard Transport Cases
$0.00
Quantity

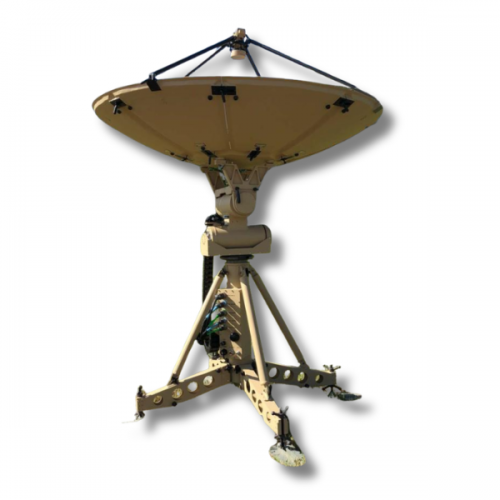

15138 Transportable X/Y Prime Focus
15138
The Sat-Lite Technologies Model 15138 Transportable X-Y antenna is designed for high performance portability in a lightweight package. The antenna features a 9-pc segmented carbon fiber composite reflector and a highperformance servo control system. Assembly time is less than 20 minutes. The X-Y Axis pedestal provides excellent high-speed performance for multiple applications. The antenna is designed to meet international performance specifications for LEO / MEO / GEO tracking requirements. The servo system provides full-motion control for continuous operation.
- Tracks LEO, MEO, and GEO targets
- Integrated High Performance Servo Control System with Precision Tracking
- Full Motion X/Y Pedestal for overhead tracking.
- High Speed Retrace > 15 deg / sec
- Multi-Band capable with interchangeable feeds
- Integrated L Band Beacon Receiver with Optional Spectrum Analyzer
- Precision Carbon Fiber Reflector, No Special Tools / Bolt Together Design
- Portable / No Tools required for assembly.
